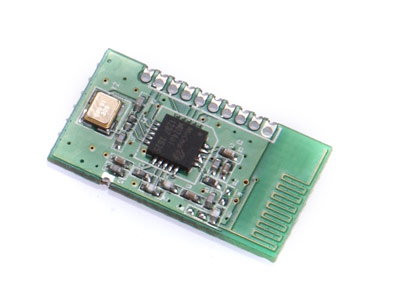

• Frequency Range 2.4GHz
• 250kbps, 1Mbps and 2Mbps on air data rates
• Ultra low power operation
• 3dBm max transmitter output power
• Wireless PC Peripherals
• Mouse, keyboards and remotes
• Advanced Media center remote controls
• VoIP headsets
• Game controllers
• RF remote controls for consumer electronics
• Active RFID

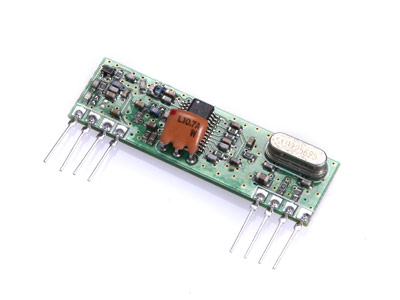

• Modulatione=ASK
• Low power consumption : 9mA
• Power down with very low supply current.(＜1uA)
• Operation temperature range : ﹣20℃∼＋80℃
• High Sensitivity: -118dBm .
• Power Supply (Nominal) : 3~ 5.5VDC
• Max Data Rate : 8Kbps
• Receiver Frequency : 433.92 MHz
• Dimension(LXWXH) 43*31*1.6 mm

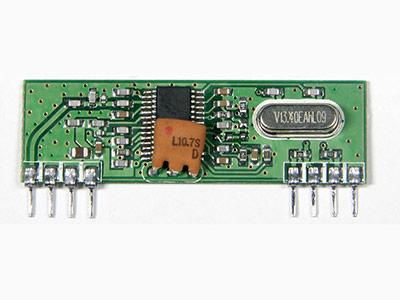

• The Module's Frequency is From UHF ASK 315/434MHz.
• High sensitivity Passive Design.
• MAX 10K B/S Data Rate.
• Simple To Apply With Low External Parts Count.
• Wide range Supply Voltage: Vcc=2.4~5 Vdc
• ASK Data Shaping Comparator Included.
• General description

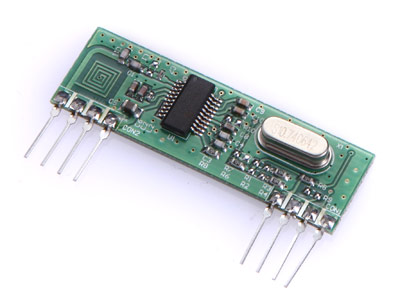

• Super Heterodyne receiver with PLL for the434MHz ISM band
• Low-cost RKE
• +2.4V to +5.5V Single-Supply Operation
• Support data rate up to 10kbps
• -106dBm sensitivity at 2kbps
• Highly Integrated PLL, VCO, Loop Filter, Mixer and Baseband
• -40℃ ~ 85℃ Temperature range

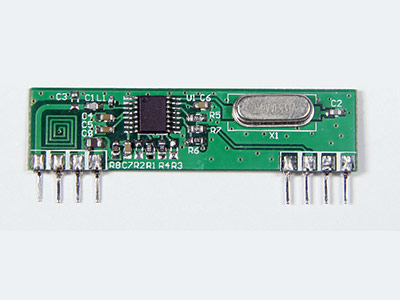

Super Heterodyne receiver with PLL for the 868.35MHz ISM band, and with a very high sensitivity and low power consumption Power down mode is with very low supply current ＜1uA.

• Frequency Range 868.35MHz
• Low-cost RKE
• +4.5V to +5.5V Single-Supply Operation
• Support data rate up to 20kbps
• -103dBm sensitivity at 1kbps
• Highly Integrated PLL, VCO, Loop Filter, Mixer and Baseband
• -40℃ ~ 85℃ Temperature range
