Lighting Technology Co., Ltd.

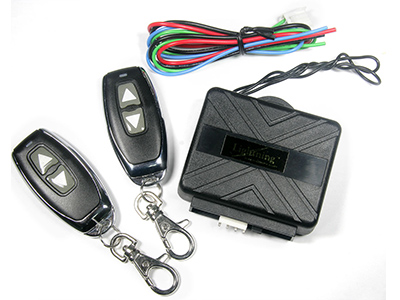

2CH-REM- Remote Gate control

Frequency : 433.92 MHz
Security Code Method : Encoder IC: PT2240B
Power could be DC: 12 VDC
Stand-by current in armed state : lower 8.7 mA
On loan output current : 43mA
1st Channel output : 10A
2nd Channel output : 10A
Type of Output Trigger : Momentary mode or Latching mode
Operating Temperature Range : -40 to + 80 degrees C
This control unit should save 100 transmitters.

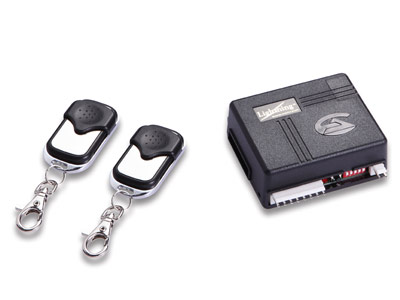

LT-112A-Garage and Swing Gate remote control system.(3 channels)

Extended remote range 50-100 meters.
4 modes available for you to choose whatever suit your particular application.
1) Pulse Mode /2) Toggle Mode 3) Push Mode 4) Roller Shutter Mode
Momentary/Latch mode/Sustaining modes available
3 Channels output.
Powers for both A/C or D/C - 12V & 24V
Learn up to 100 transmitters

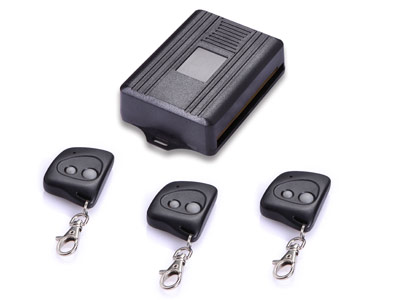

LT-200- Remote Gate controller system.(2 channels)

2 Channels output.
Codes programmable by a 8 port Dip Switch on both RX & RX
Extended remote range 50-100 meters.
Learn up to 6000up transmitters.
Powers: 12V

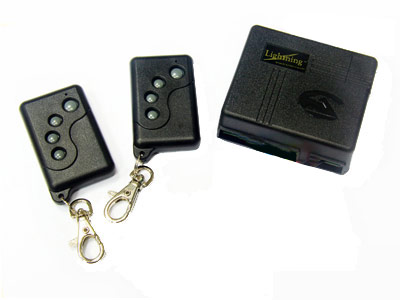

LT-101-4CH (4 channel door controller)

12vdc 10 amps inputs & outputs.
Selectable latchg or sustaining modes( by dip switch)
4 Channel outputs.
Extended remote range 50-100 meters.
