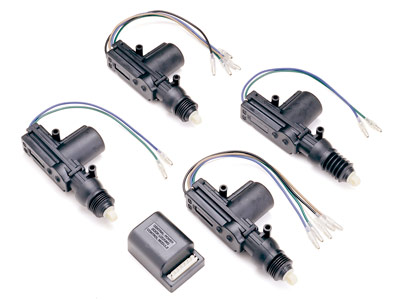

LT-CL500 (4D Central Door Lock System) Gear Type
- Standard package. 2 two wire (slave) &
2 five wire (master) actuator., Control relay.
- Cable harness & hardware kits.
- SPECS FOR BOTH GEAR & CLUTCH TYPES
OF ACTUATOR. (BOTH 2 & 5 WIRES)
A. ELECTRIC CHARACTERISTICS
- Rating voltage : 12V.
- Operating voltage : 9-16V.
- Operating environmental : -40℃ ~ 70℃.
- Empty load power consumption : under 0.13 ampwu.
- Stroke power consumption : 2.22 a.
- Manual operation resistance : 5oz. (140Grams.)
B. STRUCTURE CHARACTERISTICS.
- TRAVELING DISTANCE : 22 MM.
- PULLING POWER : 6 KG.
- LIFE CYCLE : 100,000 TIMES.
‧WEIGHT : 112 GRAMS.

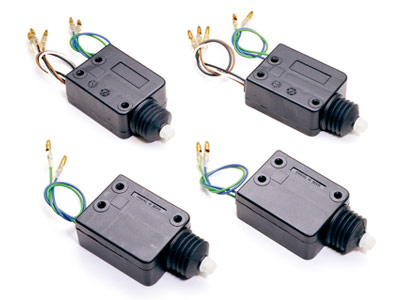

LT-CL04 (4D Central Door Lock System) Clutch Type
- Working Voltage : 12V±.5.
- At Stall Current : 2.5~ 5 A (12V).
- Working temp. : -20℃~ +60℃.
- Function Way : Electric.
- Loaded Force Push / Pull : >4.5kg (12V).
- Travel Distance : 20.5mm ±1mm.
- Life Time : 45000 cycles / cycle time : 10s or 12 months.
- Weight : 5W / 102g ±3g.
2W / 90g ±3g.
- Material : PP + GF.
- Motor : M.I.T.
- Micro Switch : M.I.T.
- Low Power consumption.
- Reliability.
- Easy installation.

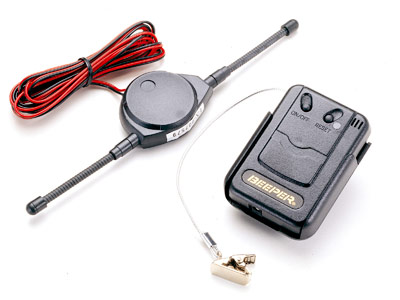

LTPG-2W - 2 Watt Pager. 400-600m Range
- ALERT PAGER. LTPG2W SPECIFICATION.
RECEIVER.
- Dimension ( L x H x W ) : 7.5 x 4.8 x 2cm.
- Frequency : 433.92Mhz.
- Power source. 2 x dc 1.5v um-5.
- Standby current : 0.7mA.
- Power consumption : 15 mA.
- Receiving sensitivity : 2.2 nv.
- Number of codes : 4996.

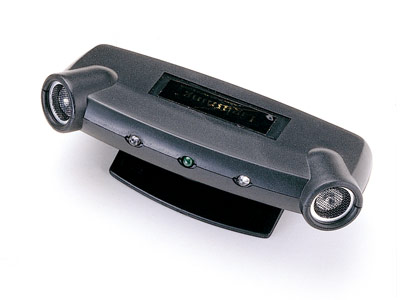

LT-U101 (Ultrasonics Sensor)
WIRING INSTRUCTIONS
- Red wire : +12V.
- Black wire:ground.
- White wire : -Ve trigger output.
